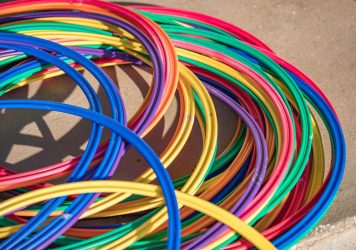

Applications of Plastic Jacketing for Wire & Cable Protection

Wire and cable systems are often expected to perform in environments where they face moisture, abrasion, chemicals, temperature changes, and repeated movement. While the conductor inside the cable carries the electrical signal or power, the materials surrounding it play an important role in protecting that conductor.

Plastic jacketing provides a durable outer layer that can be designed around the specific conditions a wire or cable will encounter. Custom plastic extrusion makes it possible to produce jacketing with controlled dimensions, material properties, colors, and performance characteristics. Let’s take a closer look.

Electrical and Electronic Wiring

Plastic jacketing is widely used to protect electrical wiring in residential, commercial, and industrial applications. The jacket helps isolate the internal components from physical damage while providing an additional protective barrier.

Depending on the application, materials can be selected for flexibility, flame resistance, temperature performance, or electrical insulation properties. Consistent extrusion is particularly important because variations in wall thickness can affect both protection and the finished dimensions of the cable.

Automotive and Transportation Applications

Vehicles contain extensive networks of wiring that must operate despite vibration, temperature fluctuations, moisture, oils, and other contaminants. Plastic jacketing helps protect automotive wiring harnesses and individual cables from these conditions.

Flexible jacketing may also be useful in areas where cables must bend around components or move during normal vehicle operation. Material selection can be tailored to the specific environmental conditions found under the hood, inside the cabin, or elsewhere in the vehicle.

Industrial Equipment and Machinery

Manufacturing facilities often expose wiring to challenging conditions. Cables may encounter lubricants, chemicals, abrasion, moving equipment, and continuous vibration.

Plastic jacketing can provide an additional layer of protection for cables used with motors, sensors, automated machinery, control systems, and other industrial equipment. In applications involving repeated movement, the jacket can also be designed with flexibility and durability in mind.

Outdoor and Infrastructure Applications

Outdoor cables face a different set of challenges, including sunlight, rain, temperature changes, and prolonged environmental exposure. Plastic formulations can incorporate additives designed to improve UV resistance and weatherability.

These properties make plastic jacketing useful for telecommunications, lighting, transportation infrastructure, energy systems, and other outdoor installations. The correct formulation can help maintain cable performance while reducing premature deterioration of the protective outer layer.

Telecommunications and Data Cables

Modern communication systems depend on cables that contain delicate internal components. Plastic jacketing protects these components during installation and throughout the service life of the cable.

Custom extrusion also allows manufacturers to control jacket thickness, outside diameter, color, and other characteristics. Color coding can make identification easier when numerous cables are installed together, while tight dimensional tolerances can help cables fit properly within connectors, conduits, and assemblies.

Choosing the Right Plastic Jacketing Material

There is no single plastic that is ideal for every wire and cable application. PVC, polyethylene, thermoplastic elastomers, and other materials each offer different combinations of flexibility, chemical resistance, durability, weather resistance, and cost.

The best choice depends on where the cable will be used and what it must withstand. By matching material properties, jacket dimensions, and extrusion requirements to the application, manufacturers can create wire and cable products that remain protected in demanding operating environments.

Custom Extrusion with Inplex

Looking for quality custom extrusion products and services? Inplex is one of the leading custom extrusion services in the US and has almost 60 years of experience. We pride ourselves on our ability to put the right talent and technology in place to perform the best possible job for our clients.

We own a 42,000 sq. ft. facility in Naperville, Illinois, that is temperature-controlled and features an environmentally friendly closed-loop water cooling system. If you have specific needs or questions, don’t hesitate to contact us!
